Creation of SUPER and SUPER+ objects:
ONE SUPER
Object will be generated for every ONE set of RED, GREEN and BLACK objects collected
and deposited (in one single trip to the Collection Box) in the WORLD_2. ONE SUPER+ Object will be generated for every
TWO sets of RED, GREEN and BLACK objects collected and deposited (in one single
trip to the Collection Box) in the WORLD_2.
The SUPER or
SUPER+ objects generated by BLUE team can only be collected by the BLUE team
itself. Likewise, the SUPER or SUPER+ objects generated by RED team can only be
collected by the RED team itself.
Size, colour and shape of SUPER and SUPER+ objects:
As shown in
Fig. 5-9, the SUPER and SUPER+ objects are about 5mm in diameter. They are
circular in shape and purple in colour.

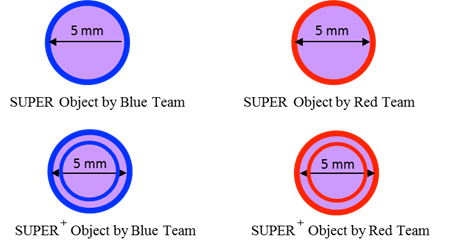

Fig. 5-9:
SUPER and SUPER+ objects
Placement of SUPER and SUPER+ objects:
The CoSpace
server will send the coordinates (X, Y) of the SUPER or SUPER+ objects to the
respective team upon SUPER or SUPER+ objects’ creation.

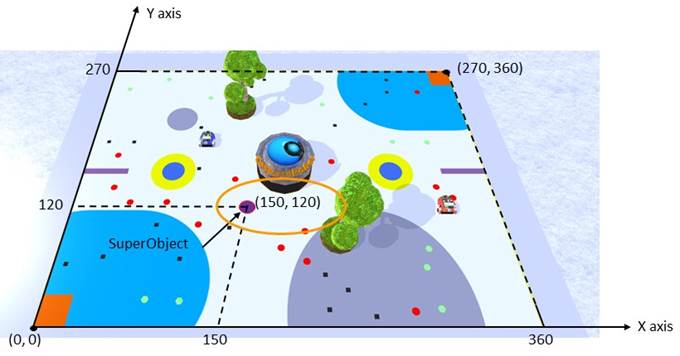

Fig. 5-10:
Placement positons of SUPER and SUPER+ objects
When the
SuperObject is generated, its coordinates will be assigned to the variables:
SuperObj_X and SuperObj_Y. In this case, SuperObj_X = 150, SuperObj_Y = 120.
(Refer RCJ CoSpace Rule 2016 for details)
